Rossoctl Identity, Authentication, & Authorization Guide

This comprehensive guide covers all aspects of identity, authentication, and authorization in the Rossoctl platform. Rossoctl implements a Zero-Trust Architecture that combines SPIFFE/SPIRE workload identity, OAuth2 token exchange, and Keycloak identity management to provide secure, scalable, and dynamic authentication for cloud-native AI agents.

In practice, the Authorization Pattern within the Agentic Platform enables:

  • Machine Identity Management – replacing static credentials with SPIRE-issued JWTs.
  • Secure Delegation – enforcing token exchange to propagate identity across services without excessive permissions.
  • Continuous Verification – ensuring authentication and authorization at each step, preventing privilege escalation.

📚 Related Documentation​

🏗️ Architecture Overview​

Zero-Trust Identity Foundation​

Rossoctl's identity architecture is built on three core principles:

  1. No Implicit Trust - Every request requires explicit authentication and authorization
  2. Least Privilege Access - Users and workloads receive minimum necessary permissions
  3. Continuous Verification - Identity and permissions are validated at every interaction

Key Components​

ComponentPurposeTechnology
SPIFFE/SPIREWorkload Identity & AttestationIndustry-standard workload identity framework
KeycloakIdentity Provider & Access ManagementOAuth2/OIDC compliant identity server
OAuth2 Token ExchangeSecure Token DelegationRFC 8693 token exchange protocol
MCP GatewayProtocol-Level AuthenticationEnvoy-based authentication proxy
Kubernetes RBACContainer-Level AuthorizationNative Kubernetes access controls

🔐 SPIFFE/SPIRE Workload Identity​

What is SPIFFE/SPIRE?​

SPIFFE (Secure Production Identity Framework For Everyone) provides a universal identity control plane for distributed systems. SPIRE is the production-ready implementation that issues and manages SPIFFE identities.

SPIFFE Identity Format​

In Rossoctl, workloads receive SPIFFE identities in the following format:

spiffe://{trust-domain}/ns/{namespace}/sa/{service-account}

Examples:

# Slack Research Agent
spiffe://localtest.me/ns/team/sa/slack-researcher

# Weather Tool
spiffe://localtest.me/ns/team/sa/weather-tool

# GitHub Issue Agent
spiffe://apps.cluster-swkz5.dynamic.redhatworkshops.io/ns/team/sa/github-issue-agent

# MCP Gateway Service
spiffe://apps.cluster-swkz5.dynamic.redhatworkshops.io/ns/gateway-system/sa/mcp-gateway

SVID Types​

SPIRE issues SPIFFE Verifiable Identity Documents (SVIDs) in two formats:

  1. X.509 SVID - Certificate-based identity for mTLS
  2. JWT SVID - Token-based identity for HTTP APIs

JWT SVID Structure:

{
  "sub": "spiffe://localtest.me/ns/team/sa/slack-researcher",
  "aud": "rossoctl",
  "exp": 1735689600,
  "iat": 1735686000,
  "iss": "https://spire-server.spire.svc.cluster.local:8443"
}

SPIRE Environment Validation​

To verify SPIRE is properly configured:

1. OIDC Discovery Endpoint​

# Check SPIRE OIDC service and
# Verify JWT signing keys
curl http://spire-oidc.localtest.me:8080/keys

2. Tornjak Management Interface​

# Access Tornjak UI
open http://spire-tornjak-ui.localtest.me:8080/

3. Workload SVID Validation​

# Check if agent has received SVID
kubectl exec -n team deployment/slack-researcher -- ls -la /opt/
# Should show: svid.pem, svid_key.pem, svid_bundle.pem, jwt_svid.token

# Inspect JWT SVID content
kubectl exec -n team deployment/slack-researcher -- cat /opt/jwt_svid.token

# Decode JWT SVID (requires jq)
kubectl exec -n team deployment/slack-researcher -- cat /opt/jwt_svid.token | \
  cut -d'.' -f2 | base64 -d | jq .

🎫 Keycloak Identity Management​

Keycloak Architecture in Rossoctl​

Keycloak serves as the central identity provider that:

  • Manages user identities and authentication
  • Issues OAuth2/OIDC tokens
  • Enforces role-based access control (RBAC)
  • Facilitates token exchange between services
  • Validates SPIFFE identities for workload authentication

Realm Configuration​

Master Realm is configured with:

  • Users: Demo users with different access levels
  • Clients: Each agent/tool is a Keycloak client
  • Roles: Granular permissions (e.g., slack-full-access, github-partial-access)
  • Scopes: Define token audiences and permissions

Client Types​

Client TypeAuthenticationPurposeExample
Public ClientNo secretFrontend applicationsrossoctl-ui
Confidential ClientClient secretBackend servicesTraditional services
SPIFFE ClientJWT SVIDWorkload identityspiffe://localtest.me/ns/team/sa/slack-researcher

Demo Users and Access Levels​

# Full Access Users
slack-full-access-user:
  password: "password"
  roles: ["slack-full-access", "slack-partial-access"]
  permissions:
    - channels:read
    - channels:history
    - messages:write

# Partial Access Users
slack-partial-access-user:
  password: "password"
  roles: ["slack-partial-access"]
  permissions:
    - channels:read

# GitHub Users
github-full-access-user:
  password: "password"
  roles: ["github-full-access", "github-partial-access"]
  permissions:
    - repos:read
    - issues:write
    - issues:read

github-partial-access-user:
  password: "password"
  roles: ["github-partial-access"]
  permissions:
    - issues:read

# Admin Users
admin:
  password: "admin"
  roles: ["admin", "*"]
  permissions: ["*"]

Keycloak Admin Access​

# Access Keycloak Admin Console
# on kind:
open http://keycloak.localtest.me:8080/admin/master/console/
# on OpenShift:
open "https://$(kubectl get route mcp-proxy -n rossoctl-system -o jsonpath='{.status.ingress[0].host}')"

# Get admin credentials from Kubernetes (if different)
kubectl get secret keycloak-initial-admin -n keycloak -o go-template=\
  'Username: {{.data.username | base64decode}}  Password: {{.data.password | base64decode}}{{"\n"}}'
# Example output:
# Username: admin  Password: XyZ1234!

🔄 OAuth2 Token Exchange Flows​

Token Exchange Protocol (RFC 8693)​

Rossoctl implements OAuth2 Token Exchange to enable secure token delegation across the agent ecosystem. This allows:

  • User identity propagation through agent → tool chains
  • Least-privilege token scoping
  • Audit trails for all access requests

Authentication Flow Stages​

📊 Diagrams: The following sequence diagrams illustrate Rossoctl's authentication flows. Each diagram is available as both PNG (for documentation) and SVG (for presentations) in the docs/diagrams/images/ directory. The original Mermaid source files are preserved in collapsible sections below each diagram.

Stage 1: User Authentication​

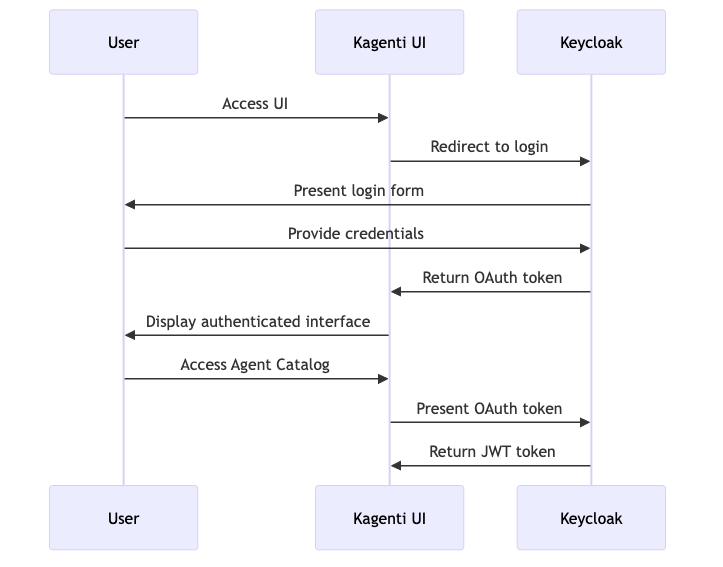

User Authentication Flow

Figure 1: User Authentication Flow - Shows how users authenticate with Rossoctl UI through Keycloak OIDC flow

View Mermaid Source Code

HTTP Request:

POST /realms/master/protocol/openid-connect/token
Content-Type: application/x-www-form-urlencoded

grant_type=authorization_code
&client_id=rossoctl-ui
&code=<auth_code>
&redirect_uri=http://rossoctl-ui.localtest.me:8080/callback

Response:

{
  "access_token": "eyJ0eXAiOiJKV1Q...",
  "expires_in": 600,
  "scope": "openid profile email",
  "token_type": "Bearer",
  "id_token": "eyJ0eXAiOiJKV1Q..."
}

Stage 2: Keycloak Client Registration Flow (Operator-managed)​

Keycloak client registration is now handled by the rossoctl-operator's ClientRegistrationReconciler controller. The controller:

  1. Reconciles AgentRuntime CRs and applies rossoctl.io/type: agent or tool labels to target workloads
  2. Reads Keycloak admin credentials from the keycloak-admin-secret in the operator namespace (rossoctl-system)
  3. Uses the workload's SPIFFE ID as the client identifier
  4. Registers the client with Keycloak and creates a secret containing client credentials in the agent namespace

This approach provides better security isolation by restricting Keycloak admin credentials to the operator namespace rather than replicating them to every agent namespace.

Stage 3: Agent Token Exchange​

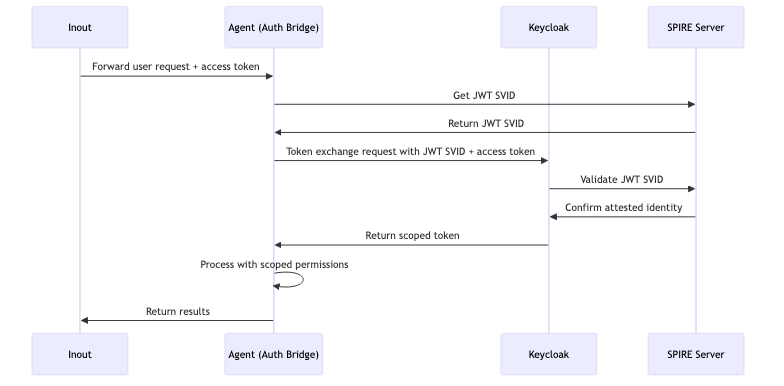

Agent Token Exchange Flow

Figure 4: Agent Token Exchange Flow - Demonstrates OAuth2 token exchange between agents and Keycloak using SPIFFE identity

View Mermaid Source Code

Token Exchange Request:

POST /realms/master/protocol/openid-connect/token
Content-Type: application/x-www-form-urlencoded
Authorization: Bearer <JWT-SVID-AGENT>

grant_type=urn:ietf:params:oauth:grant-type:token-exchange
&subject_token=<USER-JWT-TOKEN>
&subject_token_type=urn:ietf:params:oauth:token-type:access_token
&audience=slack-tool
&client_id=spiffe://localtest.me/ns/team/sa/slack-researcher

Token Exchange Response:

{
  "access_token": "eyJ0eXAiOiJKV1Q...",
  "expires_in": 300,
  "scope": "slack-partial-access",
  "token_type": "Bearer"
}

Stage 4: Internal Tool Access with Delegated Token​

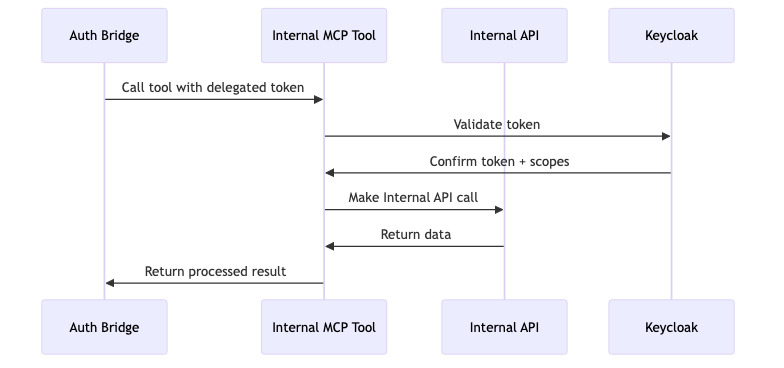

Internal Tool Access with Delegated Token Flow

Figure 4: Internal Tool Access Flow - Shows how agents call internal tools using delegated tokens with proper permission validation

View Mermaid Source Code

JWT Token Structure​

User Token:

{
  "sub": "user-123",
  "preferred_username": "slack-full-access-user",
  "aud": "rossoctl-ui",
  "exp": 1735689600,
  "roles": ["slack-full-access", "slack-partial-access"]
}

Agent-Scoped Token (after exchange):

{
  "sub": "user-123",
  "act": {
    "sub": "spiffe://localtest.me/ns/team/sa/slack-researcher"
  },
  "aud": "slack-tool",
  "exp": 1735686900,
  "scope": "slack-full-access"
}

🌐 MCP Protocol Authentication​

MCP Gateway Authentication​

The MCP Gateway acts as an authentication proxy for all Model Context Protocol communications:

Stage 5: Gateway Authentication Flow​

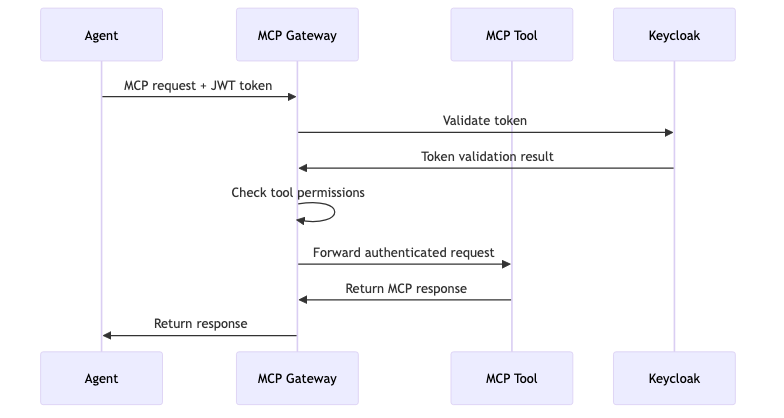

MCP Gateway Authentication Flow

Figure 5: MCP Gateway Authentication Flow - Illustrates authentication flow through the MCP Gateway proxy for Model Context Protocol communications

View Mermaid Source Code

MCP Authentication Headers​

# Agent to Gateway
POST /mcp
Host: mcp-gateway.localtest.me:8080
Authorization: Bearer <JWT-TOKEN>
Content-Type: application/json

{
  "method": "tools/list",
  "params": {}
}

Gateway Configuration​

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: slack-tool-route
  labels:
    mcp-server: "true"
spec:
  parentRefs:
  - name: mcp-gateway
    namespace: gateway-system
  hostnames:
  - "slack-tool.mcp.local"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /
    filters:
    - type: ExtensionRef
      extensionRef:
        group: rossoctl.dev
        kind: AuthFilter
        name: jwt-validator
    backendRefs:
    - name: slack-tool-mcp
      port: 8000

Tool-Specific Authentication​

Slack Tool Authentication​

# In Slack MCP Tool
def validate_request(request):
    token = request.headers.get("Authorization", "").replace("Bearer ", "")

    # Validate with Keycloak
    response = requests.get(
        "http://keycloak.keycloak.svc.cluster.local:8080/realms/master/protocol/openid-connect/userinfo",
        headers={"Authorization": f"Bearer {token}"}
    )

    if response.status_code != 200:
        raise AuthenticationError("Invalid token")

    user_info = response.json()
    scopes = user_info.get("scope", "").split()

    # Check permissions
    if "slack-full-access" in scopes:
        return PermissionLevel.FULL
    elif "slack-partial-access" in scopes:
        return PermissionLevel.PARTIAL
    else:
        raise AuthorizationError("Insufficient permissions")

Stage 6: External API Access with Delegated Token and Vault​

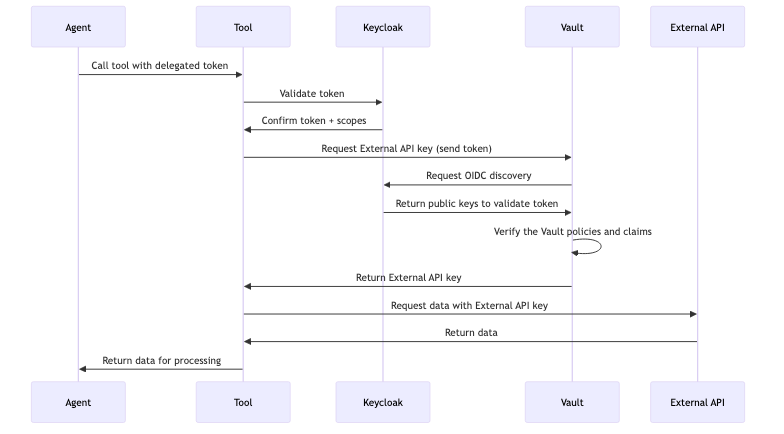

External API Access with Delegated Token and Vault Flow

Figure 6: External API Access with Vault Flow - Shows how agents call internal tools using delegated tokens with proper permission validation and the Vault exchanges this token for external API key for accessing external APIs

View Mermaid Source Code

JWT Token Structure​

User Token:

{
  "sub": "user-123",
  "preferred_username": "slack-full-access-user",
  "aud": "rossoctl-ui",
  "exp": 1735689600,
  "roles": ["slack-full-access", "slack-partial-access"]
}

Agent-Scoped Token (after exchange):

{
  "sub": "user-123",
  "act": {
    "sub": "spiffe://localtest.me/ns/team/sa/slack-researcher"
  },
  "aud": "slack-tool",
  "exp": 1735686900,
  "scope": "slack-full-access"
}

🛠️ Practical Implementation Guide​

Client Registration Process​

Operator-Managed Registration​

Keycloak client registration is handled automatically by the rossoctl-operator's ClientRegistrationReconciler. When you deploy an agent or tool:

  1. Create an AgentRuntime CR targeting the workload with spec.type: agent or spec.type: tool
  2. The operator reconciles the AgentRuntime, applies the rossoctl.io/type label to the target workload, and registers it with Keycloak using:
    • Client ID pattern depends on whether SPIFFE is enabled:
      • SPIFFE disabled: namespace/workload-name (e.g., team1/slack-researcher)
      • SPIFFE enabled: spiffe://trustdomain/ns/namespace/sa/serviceaccount (e.g., spiffe://localtest.me/ns/team1/sa/slack-researcher-sa)
    • Keycloak admin credentials from the keycloak-admin-secret in the operator namespace
  3. The operator creates a secret in the agent namespace containing client credentials

This is fully automatic and requires no manual intervention or init containers.

Reading Client Credentials in Application Code​

Applications can read the client credentials from the secret created by the operator:

import os

# Read client credentials from operator-created secret
# Mounted at /secrets by the platform
client_id = open("/secrets/client-id.txt").read().strip()
client_secret = open("/secrets/client-secret.txt").read().strip()

# Use credentials for OAuth2 flows
keycloak_url = os.getenv("KEYCLOAK_URL", "http://keycloak.keycloak.svc.cluster.local:8080")
realm = os.getenv("KEYCLOAK_REALM", "master")

Token Exchange Implementation​

Agent-Side Token Exchange​

import requests
import os

def exchange_token_for_tool(user_token: str, tool_audience: str) -> str:
    """Exchange user token for tool-scoped token."""

    # Read SPIFFE JWT SVID
    with open("/opt/jwt_svid.token", "r") as f:
        jwt_svid = f.read().strip()

    # Get client ID from SVID
    payload = jwt.decode(jwt_svid, options={"verify_signature": False})
    client_id = payload["sub"]

    # Token exchange request
    token_exchange_data = {
        "grant_type": "urn:ietf:params:oauth:grant-type:token-exchange",
        "subject_token": user_token,
        "subject_token_type": "urn:ietf:params:oauth:token-type:access_token",
        "audience": tool_audience,
        "client_id": client_id
    }

    response = requests.post(
        "http://keycloak.keycloak.svc.cluster.local:8080/realms/master/protocol/openid-connect/token",
        data=token_exchange_data,
        headers={
            "Authorization": f"Bearer {jwt_svid}",
            "Content-Type": "application/x-www-form-urlencoded"
        }
    )

    if response.status_code != 200:
        raise Exception(f"Token exchange failed: {response.text}")

    return response.json()["access_token"]

# Usage example
user_token = request.headers.get("Authorization", "").replace("Bearer ", "")
tool_token = exchange_token_for_tool(user_token, "slack-tool")

# Call tool with scoped token
tool_response = requests.post(
    "http://slack-tool.team.svc.cluster.local:8000/mcp",
    headers={"Authorization": f"Bearer {tool_token}"},
    json={"method": "tools/list"}
)

🌉 AuthBridge Component​

The AuthBridge Component provides a complete, hands-on implementation of Rossoctl's identity and authorization patterns. It combines Client Registration and AuthProxy to demonstrate the full zero-trust authentication flow.

What AuthBridge Demonstrates​

CapabilityDescription
Automatic Workload IdentityPod registers itself with Keycloak using SPIFFE ID
Inbound JWT ValidationValidates incoming token signature, expiration, and issuer via JWKS; optionally validates audience. Returns 401 for invalid tokens.
Transparent Token ExchangeSidecar exchanges outbound tokens for correct target audience via Keycloak
Target Service ValidationTarget validates token has correct audience

AuthBridge Architecture​

┌─────────────────────────────────────────────────────────────────────────────────┐
│  1. Operator reconciles AgentRuntime CRs and labels target workloads            │
│  2. Operator registers client with Keycloak (using admin credentials from       │
│     operator namespace) and creates credentials secret in agent namespace       │
│  3. (If SPIFFE enabled) SPIFFE Helper obtains SVID from SPIRE Agent             │
│  4. Agent gets token from Keycloak using credentials from secret                │
│  5. Agent sends request to target with token                                    │
│  6. Envoy+ext-proc intercepts: validates token signature, expiration, issuer    │
│     via JWKS (returns 401 if invalid), then exchanges token for target audience │
│  7. Target receives request with exchanged token and validates audience         │
└─────────────────────────────────────────────────────────────────────────────────┘

  Operator                   SPIRE Agent           Keycloak              Target
       │                         │                     │                    │
       │ 1. Watch workload       │                     │                    │
       │ 2. Register client      │                     │                    │
       ├─────────────────────────┼────────────────────►│                    │
       │                         │                     │                    │
       │ Create credentials      │                     │                    │
       │ secret in agent ns      │                     │                    │
       │                         │                     │                    │
       │              ┌─────────┐│  3. Get SVID        │                    │
       │              │ SPIFFE  ││◄────────────────────┤                    │
       │              │ Helper  ││                     │                    │
       │              └─────────┘│                     │                    │
       │                    │    │                     │                    │
       │              ┌─────────┐│                     │                    │
       │              │  Agent  ││  4. Get token       │                    │
       │              │         ││────────────────────►│                    │
       │              │         ││◄────────────────────│                    │
       │              │         ││  (aud: agent's ID)  │                    │
       │              │         ││                     │                    │
       │              │         ││  5. Request + token │                    │
       │              │         ││─────────────────────┼───────────────────►│
       │              └─────────┘│                     │                    │
       │                    │    │                     │                    │
       │         ┌──────────────┐│                     │                    │
       │         │ Envoy+ext-pr ││  6. Validate &      │                    │
       │         │              ││     Exchange token  │                    │
       │         │              ││────────────────────►│                    │
       │         │              ││◄────────────────────│                    │
       │         │              ││  (aud: target)      │                    │
       │         │              ││─────────────────────┼───────────────────►│
       │         └──────────────┘│                     │  7. Validate aud   │
       │                         │                     │       "authorized" │

AuthBridge Components​

ComponentTypePurpose
Rossoctl OperatorControllerReconciles AgentRuntime CRs, applies rossoctl.io/type labels to target workloads, registers them as OAuth clients in Keycloak, and creates credentials secrets in agent namespaces
SPIFFE HelperContainer(Optional, when SPIFFE enabled) Obtains SVID from SPIRE Agent for workload identity
Envoy + Go Processor (Ext Proc)SidecarIntercepts traffic in both directions: inbound — validates JWT (signature, expiration, issuer, optional audience) via JWKS, returns 401 for invalid tokens; outbound — exchanges tokens for target audience via Keycloak

Note: Client registration is fully automatic. The operator reads Keycloak admin credentials from keycloak-admin-secret in the operator namespace (not from agent namespaces), providing better security isolation.

Hands-On Demos​

For step-by-step AuthBridge demos with real working examples, see:

AuthBridge Documentation​

For complete documentation, see:

Note: The AuthBridge demo in cortex includes client-registration components for demonstration purposes. In production Rossoctl deployments, client registration is handled by the rossoctl-operator controller.

🔍 Troubleshooting & Validation​

Common Issues and Solutions​

1. SPIRE Agent Not Receiving SVID​

Symptoms:

kubectl exec -n team deployment/slack-researcher -- ls /opt/
# Missing: svid.pem, jwt_svid.token

Diagnosis:

# Check SPIRE agent logs
kubectl logs -n spire daemonset/spire-agent

# Check workload registration
kubectl exec -n spire deployment/spire-server -- \
  /opt/spire/bin/spire-server entry show

# Verify node attestation
kubectl exec -n spire deployment/spire-server -- \
  /opt/spire/bin/spire-server agent list

Solutions:

  • Ensure agent namespace has correct labels: shared-gateway-access=true
  • Verify SPIRE server can reach Kubernetes API
  • Check workload selector configuration

2. Token Exchange Failing​

Symptoms:

{
  "error": "invalid_client",
  "error_description": "Client authentication failed"
}

Diagnosis:

# Check client registration in Keycloak
curl -H "Authorization: Bearer $ADMIN_TOKEN" \
  "http://keycloak.localtest.me:8080/admin/realms/master/clients" | \
  jq '.[] | select(.clientId | contains("spiffe"))'

# Verify JWT SVID format
kubectl exec -n team deployment/slack-researcher -- \
  cat /opt/jwt_svid.token | cut -d'.' -f2 | base64 -d | jq .

Solutions:

  • Verify client is registered with correct SPIFFE ID
  • Ensure JWT SVID audience matches Keycloak expectations
  • Check token exchange permissions in Keycloak client configuration

3. MCP Gateway Authentication Issues​

Symptoms:

{
  "error": "authentication_failed",
  "message": "Invalid or missing authorization header"
}

Diagnosis:

# Check gateway logs
kubectl logs -n gateway-system deployment/mcp-gateway-controller

# Test direct tool access (bypassing gateway)
curl -H "Authorization: Bearer $TOKEN" \
  http://slack-tool.team.svc.cluster.local:8000/mcp

# Check HTTPRoute configuration
kubectl get httproute slack-tool-route -o yaml

Solutions:

  • Verify HTTPRoute has correct authentication filters
  • Ensure tool is properly registered with gateway
  • Check token format and expiration

Debugging Commands​

SPIRE Debugging​

# List all SPIRE entries
kubectl exec -n spire deployment/spire-server -- \
  /opt/spire/bin/spire-server entry show

# Check SPIRE server health
kubectl exec -n spire deployment/spire-server -- \
  /opt/spire/bin/spire-server healthcheck

# Validate specific workload SVID
SPIFFE_ID="spiffe://localtest.me/ns/team/sa/slack-researcher"
kubectl exec -n spire deployment/spire-server -- \
  /opt/spire/bin/spire-server entry show -spiffeID $SPIFFE_ID

Keycloak Debugging​

# Get admin token
ADMIN_TOKEN=$(curl -sX POST \
  -d "client_id=admin-cli" \
  -d "username=admin" \
  -d "password=admin" \
  -d "grant_type=password" \
  "http://keycloak.localtest.me:8080/realms/master/protocol/openid-connect/token" | \
  jq -r .access_token)

# List all clients
curl -H "Authorization: Bearer $ADMIN_TOKEN" \
  "http://keycloak.localtest.me:8080/admin/realms/master/clients" | jq .

# Check specific client configuration
CLIENT_ID="spiffe://localtest.me/ns/team/sa/slack-researcher"
curl -H "Authorization: Bearer $ADMIN_TOKEN" \
  "http://keycloak.localtest.me:8080/admin/realms/master/clients?clientId=${CLIENT_ID}" | jq .

# Validate user token
USER_TOKEN="eyJ0eXAiOiJKV1Q..."
curl -H "Authorization: Bearer $USER_TOKEN" \
  "http://keycloak.localtest.me:8080/realms/master/protocol/openid-connect/userinfo"

Token Validation​

# Decode JWT without verification (for debugging)
decode_jwt() {
  echo $1 | cut -d'.' -f2 | base64 -d | jq .
}

# Usage
TOKEN="eyJ0eXAiOiJKV1Q..."
decode_jwt $TOKEN

# Validate token expiration
check_token_expiry() {
  local token=$1
  local exp=$(echo $token | cut -d'.' -f2 | base64 -d | jq -r .exp)
  local now=$(date +%s)

  if [ $exp -gt $now ]; then
    echo "Token valid for $((exp - now)) seconds"
  else
    echo "Token expired $((now - exp)) seconds ago"
  fi
}

check_token_expiry $TOKEN

🛡️ Security Best Practices​

Production Security Checklist​

SPIRE Configuration​

  • Enable SPIRE server HA (multiple replicas)
  • Use persistent storage for SPIRE server database
  • Configure proper node attestation (not k8s-sat in production)
  • Enable SPIRE server TLS with proper certificates
  • Implement SPIRE server access controls
  • Set appropriate SVID TTL values (< 1 hour recommended)
  • Enable SPIRE audit logging

Keycloak Security​

  • Change default admin credentials
  • Enable HTTPS for all Keycloak endpoints
  • Configure proper session timeouts
  • Set up backup and recovery procedures
  • Enable audit logging
  • Implement brute force protection
  • Configure proper CORS policies
  • Use strong client secrets for confidential clients

Token Security​

  • Set short token lifetimes (5-15 minutes)
  • Implement token refresh mechanisms
  • Use secure token storage (never in logs)
  • Validate all token claims (aud, exp, iat)
  • Implement proper token revocation
  • Use HTTPS for all token exchanges
  • Monitor for token abuse patterns

Network Security​

  • Use mTLS between all internal services
  • Implement network policies to restrict traffic
  • Configure ingress with proper TLS termination
  • Use service mesh for additional security layers
  • Monitor all authentication events
  • Implement rate limiting on auth endpoints

Security Monitoring​

Key Metrics to Monitor​

# Authentication Metrics
- authentication_requests_total
- authentication_failures_total
- token_exchange_requests_total
- token_validation_failures_total
- spire_svid_issuance_total
- keycloak_login_attempts_total

# Security Alerts
- High authentication failure rates
- Unusual token exchange patterns
- SPIRE attestation failures
- Expired certificate usage attempts
- Suspicious user agent patterns

Audit Log Configuration​

# SPIRE Server Audit
apiVersion: v1
kind: ConfigMap
metadata:
  name: spire-server-config
data:
  server.conf: |
    log_level = "INFO"
    audit_log_enabled = true
    audit_log_path = "/var/log/spire-audit.log"

# Keycloak Audit
apiVersion: v1
kind: ConfigMap
metadata:
  name: keycloak-config
data:
  keycloak.conf: |
    spi-events-listener-jboss-logging-success-level=info
    spi-events-listener-jboss-logging-error-level=warn

📋 Quick Reference​

Essential URLs​

# Keycloak Admin Console
http://keycloak.localtest.me:8080/admin/master/console/

# Tornjak UI
http://spire-tornjak-ui.localtest.me:8080/

# Rossoctl UI
http://rossoctl-ui.localtest.me:8080/

# MCP Gateway
http://mcp-gateway.localtest.me:8080/mcp

Default Credentials​

# Keycloak Admin — run ./.github/scripts/local-setup/show-services.sh for actual credentials

# Demo Users
slack-full-access-user: password
slack-partial-access-user: password
github-full-access-user: password
github-partial-access-user: password

Common SPIFFE IDs​

Using local kind:

# Agents
spiffe://localtest.me/ns/team/sa/slack-researcher
spiffe://localtest.me/ns/team/sa/weather-service
spiffe://localtest.me/ns/team/sa/github-issue-agent

# Tools
spiffe://localtest.me/ns/team/sa/slack-tool
spiffe://localtest.me/ns/team/sa/weather-tool
spiffe://localtest.me/ns/team/sa/github-tool

# Infrastructure
spiffe://localtest.me/ns/gateway-system/sa/mcp-gateway
spiffe://localtest.me/ns/rossoctl-system/sa/operator

Using OpenShift:

# Agents
spiffe://apps.cluster-swkz5.dynamic.redhatworkshops.io/ns/team/sa/slack-researcher
spiffe://apps.cluster-swkz5.dynamic.redhatworkshops.io/ns/team/sa/weather-service
spiffe://apps.cluster-swkz5.dynamic.redhatworkshops.io/ns/team/sa/github-issue-agent

Token Exchange Endpoints​

# Keycloak Token Endpoint
POST http://keycloak.keycloak.svc.cluster.local:8080/realms/master/protocol/openid-connect/token

# User Info Endpoint
GET http://keycloak.keycloak.svc.cluster.local:8080/realms/master/protocol/openid-connect/userinfo

# Token Introspection
POST http://keycloak.keycloak.svc.cluster.local:8080/realms/master/protocol/openid-connect/token/introspect

📚 Additional Resources​

Standards and Specifications​

Implementation Guides​

Community Resources​
